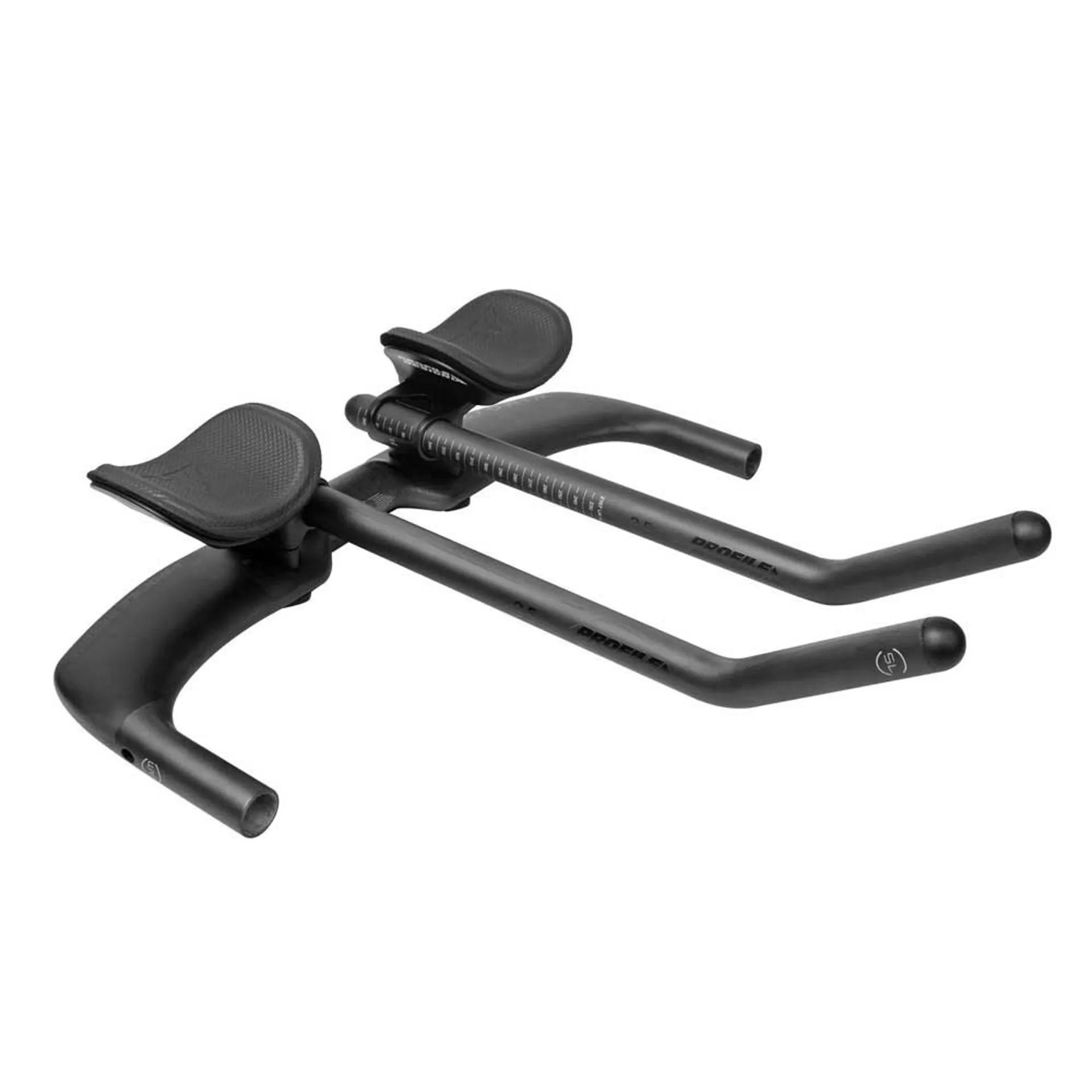

PROFILE DESIGN WING 20C+ ERGO 35SLC

The Wing 20C+ features our updated basebar shape that is optimised for aerodynamics as well as strength and stiffness. The basebar has the option for adjustment, turning the bar over changes the height of the hand grip and the aerobar by 20mm. Pairing this versatile carbon basebar with Ergo armrest creates a hug range of adjustment to aid in fine tuning the setup. The 35SLC extensions offer the same range of ergonomic options as the previous generation but the weight is halved. This also allows Di2 parts to be fitted inside the extension.


Features:

Performance:
- The Wing 20C+ offers a combination of aerodynamic integration and supreme fit range. With the change in spec comfort for most users will be increased alongside the performance advantage of lower weight.

Armrest:
- The Ergo armrest is an integral part of the overall adjustability scheme. The dual - offset design (shared with Race and Boom armrests) gives the most precise adjustment range of any armrest on the market. This, along with the evenly curved shape, allows it to work well for the majority of riders.
- The Ergo armrest shares the flippable design of the rest of our new generation armrests. By swapping sides or rotating the armrests smaller increments of movement are achieved – making it simple to fine tune a riders position or match the position from their previous aerobar or bike.

Extensions:
- The 35SLC extensions offer a 35deg angle with a low rise and 400mm length. They are drilled for rear-exit cable routing.
- They offer the lowest weight of any current carbon extension thanks to the use of very high grade carbon and exhaustive testing.
- Extension Shape: A 35 degree ski-bend extension suited to riders who prefer to adopt a wrist angle that is on the low side of the neutral range.
- The 35SLC is a straight 35° bend.

Accessory Options:
- The 35SLC extensions can be paired with the Aeroport Di2 adaptor

Aeroport Di2 Adaptor:
- The WING 20C+ is ideally paired with the Tri Stem and HSF/Aeria bottle.

Tri Stem:
- HSF/Aeria Bottle

Brackets and Risers:
- A3A Riser Kits
- A3C Riser Kits


Specifications:

- Basebar Width: 42cm (Center-to-Center)
- Internal Cable Routing: Yes (Stem or Back of the Basebar)
- Di2 Compatible: Yes
- Bracket: Aeria Ultimate Forged
- Armrest: Ergo (10mm pad)
- Armrest Stack: 64mm to 84mm
- Armrest Width: 124mm to 254mm (18.5mm Increments)
- Extension Length: 400mm
- Extension Angle: 35°
- Extension Outer Diameter: 22.2mm
- Extension Inner Diameter: 19.4mm
- Armrest Rotation: 7°
- Bracket Tilt Adjustment: 0-15°
- Pursuit OD/ID: 24.1 / 18.9mm
- Construction: Carbon

Tech Guide:
Torque settings:
- Extension Clamp: 5Nm
- Armrest Bolts: 4.7Nm
- Stem Clamp: 6Nm Max

Weight:
- Bracket: 204g (pair)
- Armrest: 141g (pair)
- Extensions: 138g (pair)
- Total: 707g (without cradles)
