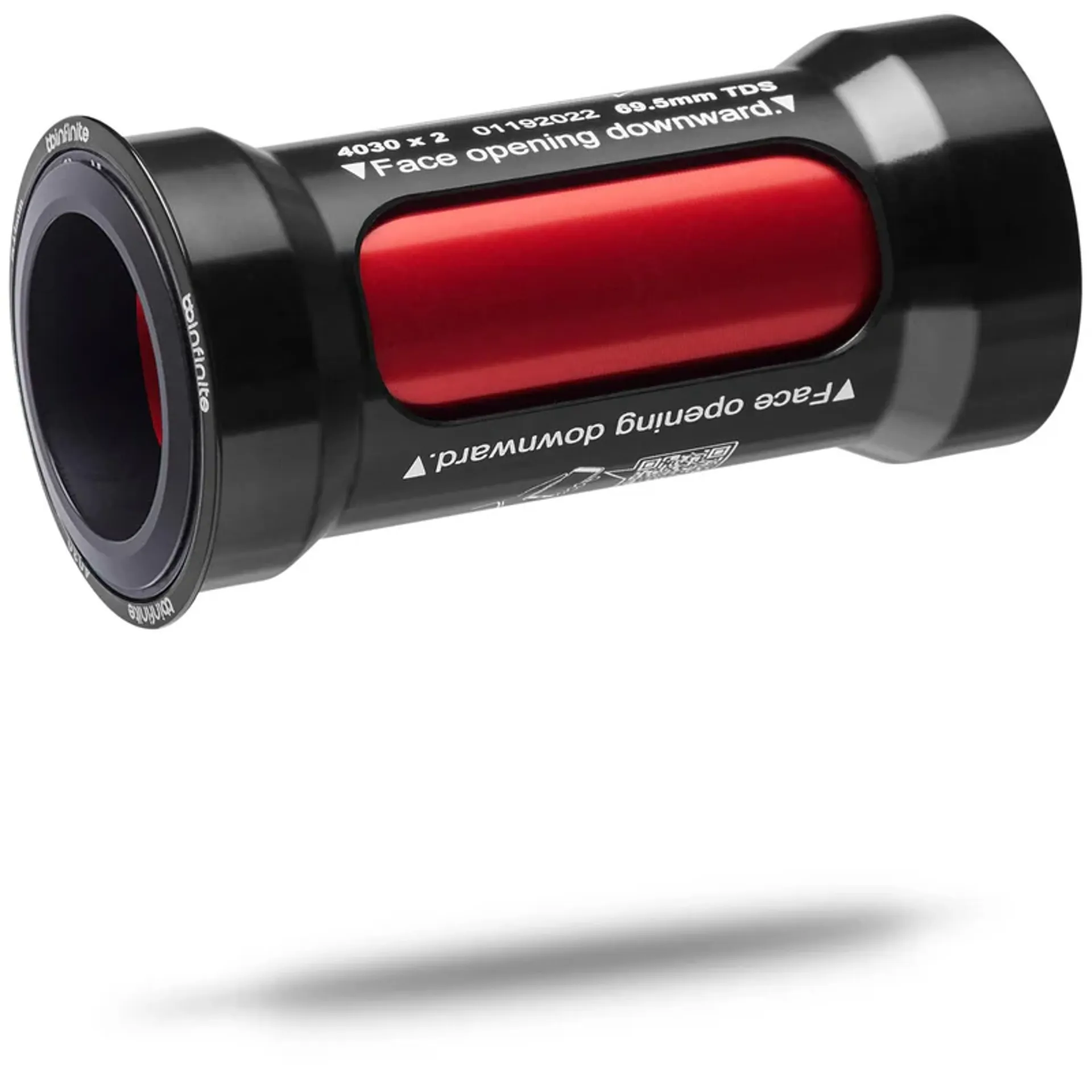

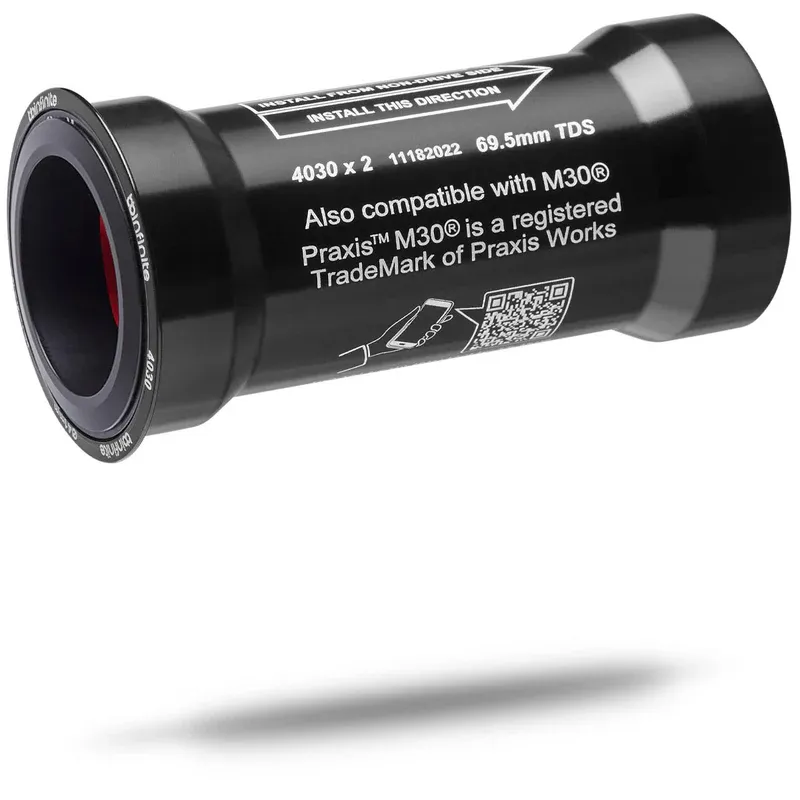

Our BBInfinite DUB BB86 Pressfit module works with all DUB road bike crank sets on the market.All of our 29mmBB86 DUB bottom bracketmodules ship with the special press tools and retaining compounds you'll need.All you need is the press itself.TheBBInfinite BB86 Pressfit DUB bottom bracket is also known as PressFit86, and measures 41mm x 86.5mm.
Why would I choose a 2-Piece bottom bracket system?

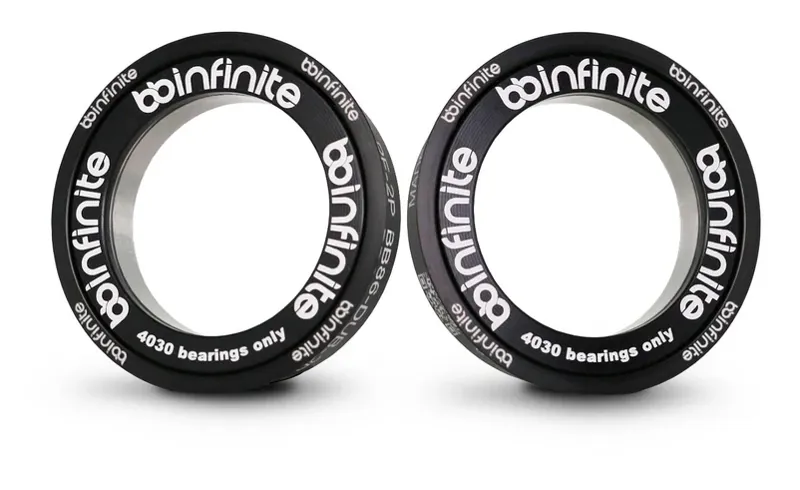

Our 2-Piece Bottom Bracket system is for any bike that cannot accommodate our 1-piece unit, making it the best DUB bottom bracket. What would cause this? Easy; any obstruction that cannot be removed which prevents our 1-piece module from passing from one side to the other in a straight line through the frame bottom bracket shell, which includes:
1) The presence of a hydraulic line that cannot be moved out of the way.
2) An immovable fixture, hump, frame feature, or cable guide.
3) Any wires that cannot be moved out of the way entirely.
Over 90% of the bikes out there can use a 1-Piece module. If you are unsure please email us with the year, make, and model of your frame, along with the crank set model and type, atinfo@bbinfinite.com, and we’ll get you sorted.
ABOUT OUR BEARING CHOICES:
Ceramitech Bearings:Our Si3n4 hybrid ceramic bearings feature ultra-spherical silicon nitride balls matched to SAE 52100 chrome steel bearing races that have been processed with additional heat treatment and polishing steps. The result is a hybrid-ceramic bearing that lasts longer than any steel bearing with spin performance no steel bearing can rival. We’re so confident in the durability of our Ceramitech bearings that we back them with a Lifetime Bearing Exchange warranty. These bearings feature mid-contact seals for extreme performance and endurance. Each bearing comes lubricated with Kluber Isoflex Topas NB52.Lifetime Warranty.
WS2 Coated Ceramitech Bearings:We took our amazing Ceramitech bearings and added an extremely durable, tungsten disulfide (WS2) coating that has a 0.03 coefficient of friction---which means it’s slicker than Teflon, graphite, and even molybdenum disulfide. WS2 has an affinity for oils and greases, which means it maintains a hydrodynamic layer of lubricant where it’s needed most. The result is astonishing spin performance and increased endurance. These bearings feature mid-contact seals for extreme performance and durability. Each bearing comes lubricated with Kluber Isoflex Topas NB52. Lifetime Warranty.
ABEC-7 Steel Bearings:Crafted from SAE 52100 chrome steel, our BBInfinite ABEC-7 (ISO 492, Class 4) bearings are so buttery that you’d have to buy our Ceramitechs to find anything better. These bearings feature mid-contact seals for extreme performance and durability. Each bearing comes lubricated with Kluber or Koyo. 1-Year Bearing Exchange Warranty.
MORE THAN EXTREME SPEED AND SILENCE:
BBInfinite BB86 DUB bottom bracket modules maintain optimal chain-lines for crisp, consistent shifting and drive train performance while dishing out trouble-free mile after trouble-free mile. From the gorgeous, high-luster of ourTypeII MilSpechard anodized finish, to the sculpted lines of our One-Piece Design, every aspect of our architecture fuses beauty with durability and performance.
Our DUB spindle optimized design is set to the widest stance the crank format allows while ensuring that interfaces between crank arm splines and spindle splines have maximum engagement and Q-factor is set as narrow as possible.
POWER METER FRIENDLY
This BB86 DUB bottom bracket module is 100% compatible with all crank-based power meters. Our flange-less drive-side architecture ensures zero interference with protruding power-meter back plates such as those found on Quarqs and SRMs.
WHY DO BBINFINITE BOTTOM BRACKETS SPIN LIKE CRAZY?:
Bicycle frame bottom bracket shells are notoriously misaligned, inconsistent, and out of round, and so it’s inadvisable to use the bike frame as the primary aligning member for bottom bracket bearings. Yet, that’s what our multi-piece bottom bracket competition does, and this explains why their systems frequently fail prematurely and creak.
A BBInfinite OPD (One-Piece-Design) bottom bracket module is a CNC precision-machined hub---like the front wheel hub on your bike---that you press into your frame. And just like your trouble-free wheel hub, BBInfinite OPD bottom brackets have perfectly aligned bearings regardless of your frame’s BB shell alignment and tolerances. Perfectly aligned bearings are essential for thousands of miles of trouble-free use and extreme spin performance.
WHAT KEEPS BBINFINITE BOTTOM BRACKETS FROM CREAKING?
BBInfinite OPD is the answer forcreaking bottom bracketproblems as well. Pedaling forces conspire to lever, and rock, and eventually work multi-piece systems loose. The unitized nature of BBInfinite OPD cancels these forces out entirely, which means creaking has no place to start in the first place. It really is that simple.
INSTALLATION IS A SNAP WITH BBINFINITE:
All BBInfinite OPD bottom brackets ship with the special press tools, hardware, instructions, and the retaining compound you need to get the job done correctly with ease and confidence. All you need is the press. If you need a press, check out ourMaster Tool Press.
SRAMDUB Compatibility Chart
