Rough roads, gravel or dirt.
Rough roads, gravel or dirt.
Giant

Revolt Advanced 3 M Carbon

$2,400.00
Size Guide
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Shipping & Collection Dates

Estimated Shipping & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Shipping & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

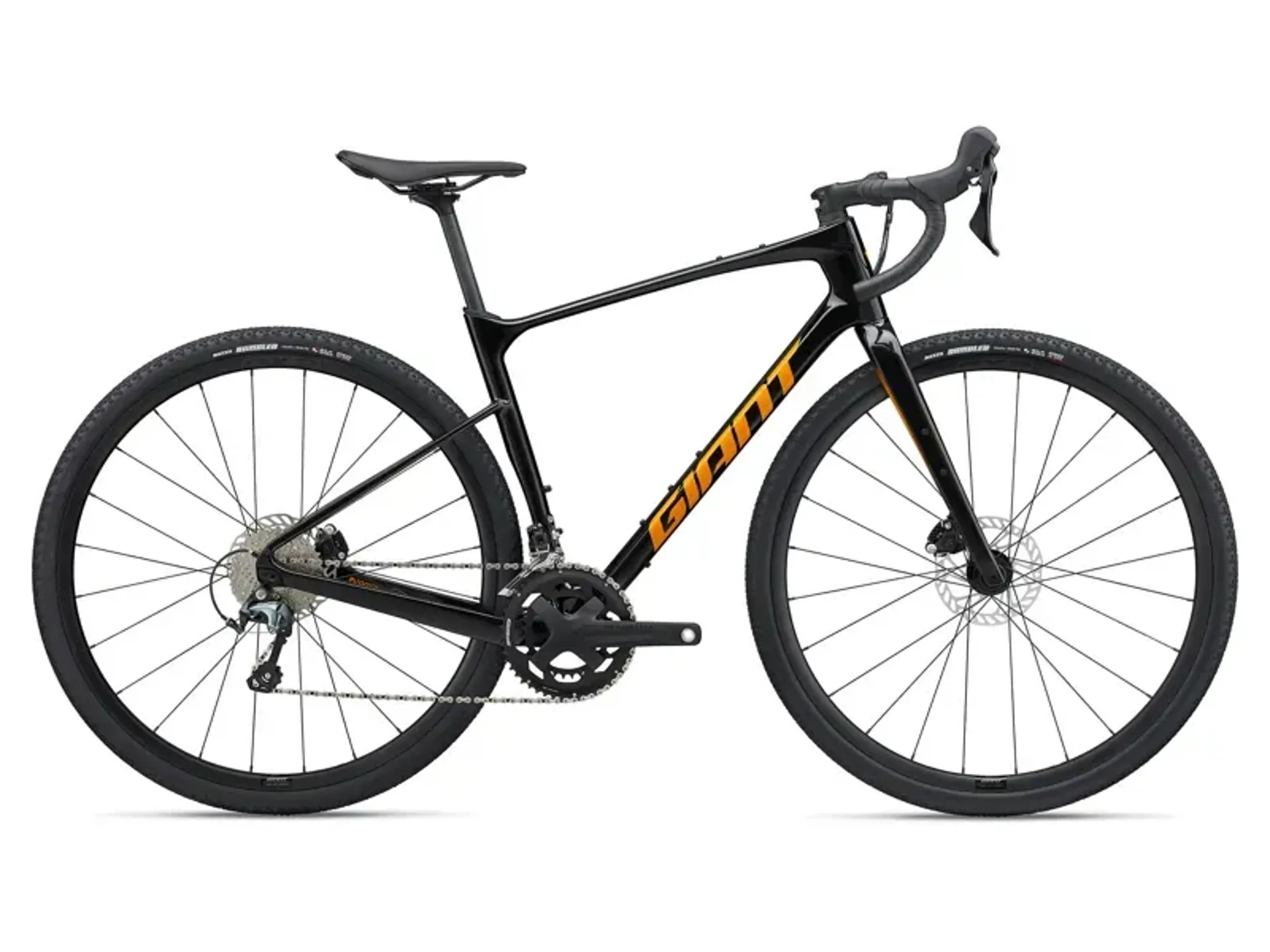

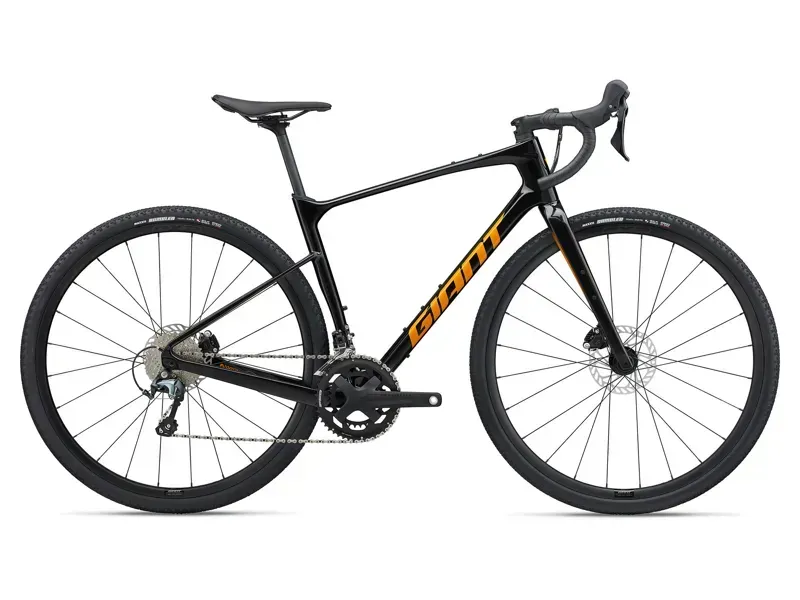

Revolt Advanced 3 M Carbon

Season:2024

Brand:Giant

Code:1079007105

Rough roads, gravel or dirt.

However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Features:

  • Fast and light - Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
  • Tuned compliance - Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
  • Adaptable to the terrain - A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm.
Technical Information
  • Sizes
    S, M, M/L, L, XL
  • Colors
    Gloss Metallic Black
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disk, flip chip dropout
  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disk
  • Shock
    N/A
  • Handlebar
    Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost
    Giant D-Fuse, composite, 14mm offset
  • Saddle
    Giant Approach
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    Shimano GRX RX-400, 2x10
  • Front Derailleur
    Shimano Tiagra FD-4700
  • Rear Derailleur
    Shimano Tiagra
  • Brakes
    Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano GRX RX-400 hydraulic
  • Cassette
    Shimano Tiagra, 11x34
  • Chain
    KMC X10-1
  • Crankset
    FSA Omega, 32/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    FSA BB-AL86
  • Rims
    Giant P-X2 Disk wheelset, alloy
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Sapim
  • Tires
    Maxxis Rambler, 700x40c, tubeless
  • Extras
    Factory tubeless set up, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
  • Max Chainring Size
    SRAM Wide 2x 43-30, 1x 46T. Shimano GRX 2x 48-31, 1x 42T
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
